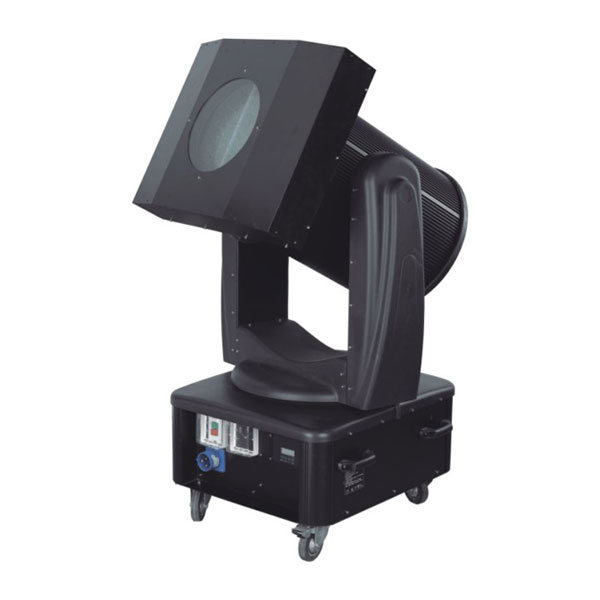

Computer shaking his head for color searchlight
Technical Parameters
Special design reflective bowl, produce the highest brightness output X-axis,
360 degrees with photosensitive error correction function, can automatically correct the lamp home.
X-axis fine-tuning: 5.4 degrees, fine-tuning, positioning more accurate
Y-axis fine-tuning: 224 degrees with photosensitive error correction function, can automatically correct the lamp home
Y-axis fine-tuning: 5.4 degrees fine-tuning, positioning more accurate
White + CMY color change system, can be combined with a variety of colors, parallel light output, projection
Distance up to 4KM, beam size diameter 250MM body over-voltage, overheating, overload,
Short circuit protection.
Voltage: AC220V-240V 50-60HZ
Power: 2500W / 3500W / 4200W / 5600W
Light bulb XHM4000, bulb total length: 420MM, bulb fixed bit length: 385
Light bulb title: 60MM
Control signal: DMX-512 program within a single self-running function, within the program more than master and slave synchronization work
Can control the signal reset function, X axis Y axis reverse
Light body volume: 680mm × 790mm × 1430mm
Packing box (air box) Volume: 770mm × 860mm × 1490mm
Weight: 105KG Packing box weight: air box 70KG
Protection class: IP55
Control channel
1st channel: horizontal scan (0 degrees, -350 degrees)
2nd channel: horizontal scan fine-tuning 16BIT
3rd channel: vertical scan (0 degrees -270 degrees)
Channel 4: Vertical Scanning Trimming 16BIT
5th channel: horizontal vertical scanning speed
Channel 6: switch lamp / lamp body reset
Channel 7: CMY color change + soft speed adjustment
Channel 8: blue
Channel 9: Rose red
Channel 10: Yellow
Channel 11: Gradient Soft
Channel 12: dimming / strobe
Special design reflective bowl, produce the highest brightness output X-axis,
360 degrees with photosensitive error correction function, can automatically correct the lamp home.
X-axis fine-tuning: 5.4 degrees, fine-tuning, positioning more accurate
Y-axis fine-tuning: 224 degrees with photosensitive error correction function, can automatically correct the lamp home
Y-axis fine-tuning: 5.4 degrees fine-tuning, positioning more accurate
White + CMY color change system, can be combined with a variety of colors, parallel light output, projection
Distance up to 4KM, beam size diameter 250MM body over-voltage, overheating, overload,
Short circuit protection.
Voltage: AC220V-240V 50-60HZ
Power: 2500W / 3500W / 4200W / 5600W
Light bulb XHM4000, bulb total length: 420MM, bulb fixed bit length: 385
Light bulb title: 60MM
Control signal: DMX-512 program within a single self-running function, within the program more than master and slave synchronization work
Can control the signal reset function, X axis Y axis reverse
Light body volume: 680mm × 790mm × 1430mm
Packing box (air box) Volume: 770mm × 860mm × 1490mm
Weight: 105KG Packing box weight: air box 70KG
Protection class: IP55
Control channel
1st channel: horizontal scan (0 degrees, -350 degrees)
2nd channel: horizontal scan fine-tuning 16BIT
3rd channel: vertical scan (0 degrees -270 degrees)
Channel 4: Vertical Scanning Trimming 16BIT
5th channel: horizontal vertical scanning speed
Channel 6: switch lamp / lamp body reset
Channel 7: CMY color change + soft speed adjustment
Channel 8: blue
Channel 9: Rose red
Channel 10: Yellow
Channel 11: Gradient Soft
Channel 12: dimming / strobe
